- 產品詳情
特征：
Watkins-Johnson替換
緊湊型
直流至 3000 MHz
無源二極管混頻器
有許多不同的外殼和尺寸可供選擇。
密封模塊
出色的單元間重復性
低轉換損耗
低噪音系數
-50oC至100oC標準
·符合RoHS標準
選型：
| Model | RF Range | IF Range | RF Range | IF Range |
| PmT-1400B-10 | 1-2200 | 1-2200 | 5-3000 | 5-1500 |
| PmT-1400B-13 | 1-2200 | 1-2200 | 5-3000 | 5-1500 |
| PmT-1400B-17 | 1-2200 | 1-2200 | 5-3000 | 5-1500 |
| PmT1000H | 1-2700 | 1-2000 | 5-3000 | 5-1500 |
| PmT1010 | 1-2500 | 1-2000 | 5-3000 | 5-1500 |
| PmT1020H | 1-2700 | 1-2000 | 5-3000 | 5-1500 |
| PmT1030H | 10-2500 | 10-2500 | 80-2500 | DC-1000 |
| PmT1050H | 10-3000 | 10-3000 | 5-3000 | 5-1500 |
| PmT1070H | 10-1000 | 10-1000 | 10-1000 | DC-1000 |
| PmT3000 | 10-1500 | 10-1500 | 5-2500 | 5-1500 |
| PmT3010 | 10-1000 | 10-1000 | 5-1000 | DC-1000 |
| PmT3020 | 10-250 | 10-250 | 2-600 | DC-600 |
| PmT3030 | 10-250 | 10-250 | 2-600 | DC-600 |

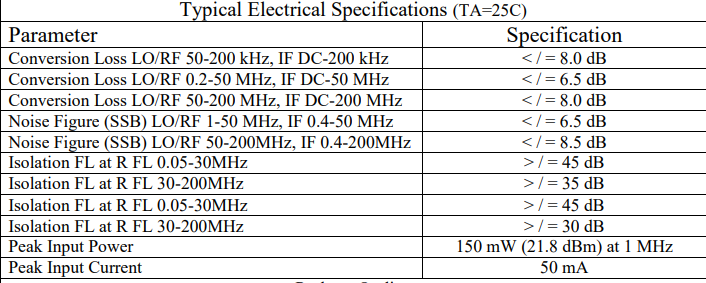

參數：
